Telemecanique Sensors

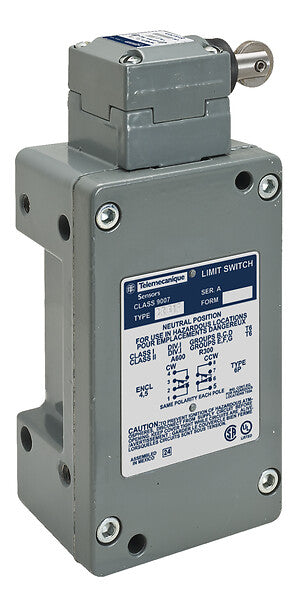

Telemecanique Sensors - 9007CR53F
Telemecanique Sensors - 9007CR53F
SKU:9007CR53F
Normaler Preis
€409,03 EUR
Normaler Preis
Verkaufspreis
€409,03 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch, 9007, 600 V 10amp c +options
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | 9007 |
| Series name | Heavy duty |
| Product or component type | Limit switch |
| Product specific application | Hazardous location box |
| Device short name | 9007CR |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Steel spring return side roller plunger with vertical roller (vertical convertible to horizontal) |
| Switch actuation | By 30° cam |
| Type of approach | Vertical approach, 2 directions |
| Electrical connection | Screw-clamp terminals (AWG 22...AWG 12), 1-2 |
| Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
| Contacts type and composition | NC-NO |
| Contact operation | Snap action |
| Positive opening | Without |
| Level or class | Class II Division 1 Groups E/F/G Class I Division 1 Groups B/C/D |
| Ergänzende Merkmale | |
| Body material | Aluminium |
| Head material | Zinc |
| Function available | Not applicable |
| Switch function | SPDT-DB |
| Contact form | Form Z |
| Contacts material | Silver contacts |
| Terminals description ISO n°1 | (1-2)NC (3-4)NO |
| Repeat accuracy | +/- 0.001 in linear travel of cam |
| Local signalling | without |
| Umgebung | |
| Shock resistance | 60 gn for 9 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
| Environmental characteristic | Standard environment |
| Protective treatment | Epoxy powder coat |
Verpackungseinheiten
| Package 1 height | 7.366 CENTIMETER |
| Package 1 width | 8.89 CENTIMETER |
| Unit type of package 1 | PCE |
| Package 1 length | 16.256 CENTIMETER |
| Number of units in package 1 | 1 |
| Package 1 weight | 1.134 KILOGRAM |
| Indivisible sale quantity | 1 |
