Telemecanique Sensors

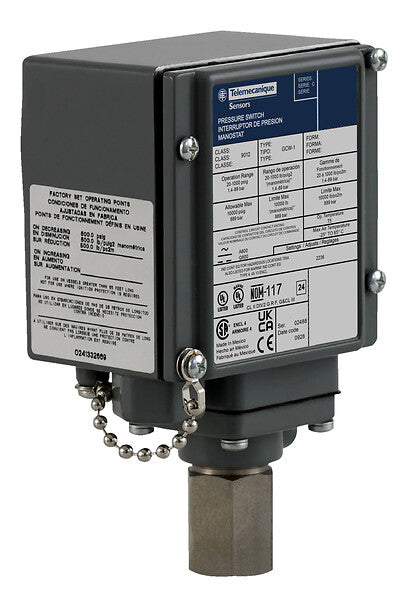

Telemecanique Sensors - 9012GCW1
Telemecanique Sensors - 9012GCW1
SKU:9012GCW1
Normaler Preis
€419,63 EUR
Normaler Preis
Verkaufspreis
€419,63 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 1000 PSIG
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | 9012G |
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Maximum pressure | 10000 psi |
| Contacts type and composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil (-15-250 °F), non-corrosive liquids (-15-250 °F), air (-15-250 °F), non-corrosive gas (-15-250 °F) |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | Without |
| Ergänzende Merkmale | |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 4 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| Setting | Internal |
| Enclosure material | Die cast aluminium alloy 380 |
| Pressure actuator | Piston |
| Operating position | Any position |
| Materials in contact with fluid | Teflon zinc plated steel |
| Operating rate | 120 cyc/mn |
| Umgebung | |
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
| Standards | CE CSA C22.2 No 14 UL 508 |
| Product certifications | CSA LR25490 class 3211 03 UL listed UL listed Marine |
| NEMA degree of protection | NEMA 4/4X/13 conforming to UL 50 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 12.7 CENTIMETER |
| Package 1 width | 16.8 CENTIMETER |
| Package 1 length | 25.9 CENTIMETER |
| Package 1 weight | 1.36 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 20.5 CENTIMETER |
| Package 2 width | 37 CENTIMETER |
| Package 2 length | 20.5 CENTIMETER |
| Package 2 weight | 0.45 KILOGRAM |
| Indivisible sale quantity | 1 |
