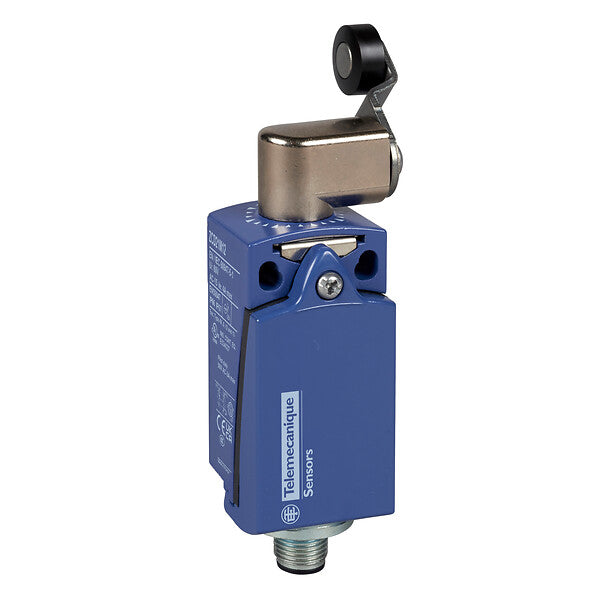

Telemecanique Sensors - XCKD2115M12SAQ
Telemecanique Sensors - XCKD2115M12SAQ
SKU:XCKD2115M12SAQ
Normaler Preis
€40,22 EUR
Normaler Preis
Verkaufspreis
€40,22 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch, Limit switches XC Standard, XCKD, 1NC + 1 NO, snap, M12
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKD |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal with nitrile boot |
| Type of approach | Vertical approach, 1 direction |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Switch actuation | On end |
| Electrical connection | Male connector M12, 5 pins |
| Contacts insulation form | Zb |
| Positive opening | With |
| Repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Umgebung | |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection | IK06 conforming to IEC 62262 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCC CSA UL |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 weight | 0.212 KILOGRAM |
| Package 1 width | 4.8 CENTIMETER |
| Package 1 length | 12.8 CENTIMETER |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 25 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.525 KILOGRAM |
| Indivisible sale quantity | 1 |
