Telemecanique Sensors

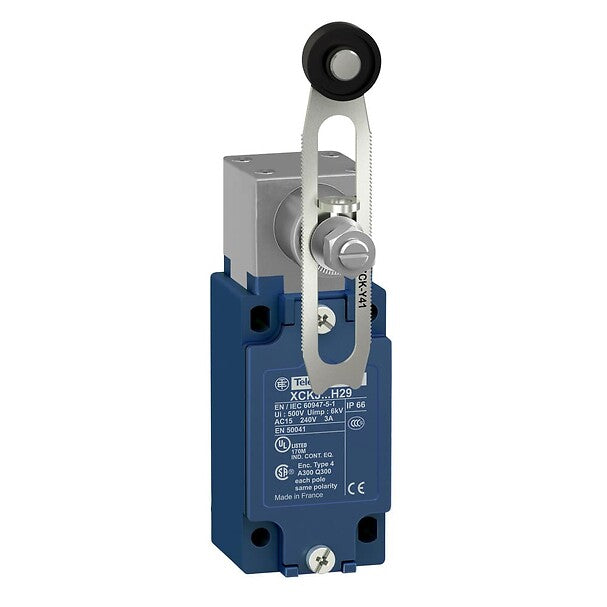

Telemecanique Sensors - XCKJ390511L0EX
Telemecanique Sensors - XCKJ390511L0EX
SKU:XCKJ390511L0EX
Normaler Preis
€163,49 EUR
Normaler Preis
Verkaufspreis
€163,49 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch, Limit switches XC Standard, XCKJ, roller lever, 2NC + NO, ATEX/IECEx
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKJ |
| Sensor design | Form A conforming to CENELEC EN 50041 |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Switch actuation | By 30° cam |
| Contacts insulation form | Zb |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Marking | II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Umgebung | |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | IEC-Ex INE 17.0020X INERIS 04ATEX0014X |
| Dust zone | Zone 21 - 22 |
| Standards | IEC 60079-0 IEC 60079-31 |
| Directives | 2014/34/EU - ATEX directive |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 9.5 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 15.5 CENTIMETER |
| Package 1 weight | 0.524 KILOGRAM |
| Package 2 height | 9.5 CENTIMETER |
| Package 2 width | 9 CENTIMETER |
| Package 2 length | 15.5 CENTIMETER |
| Package 2 weight | 524 KILOGRAM |
| Indivisible sale quantity | 1 |
