Telemecanique Sensors

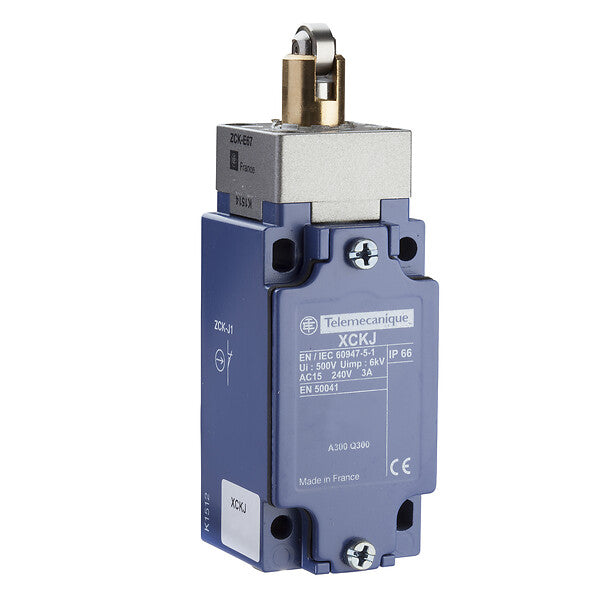

Telemecanique Sensors - XCKJ40513H29
Telemecanique Sensors - XCKJ40513H29
SKU:XCKJ40513H29
Normaler Preis
€81,01 EUR
Normaler Preis
Verkaufspreis
€81,01 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch, XC Standard, XCKJ, steel roller lever, 2 steps, 2xC/O snap M20
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKJ |
| Material | Metal |
| Type of operator | Steel roller lever metal |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contacts type and composition | 2 x 1 C/O |
| Contact operation | Snap action, simultaneous |
| Ergänzende Merkmale | |
| Switch actuation | By 30° cam |
| Contacts insulation form | Zb |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Positive opening | Without |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
| Umgebung | |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Overvoltage category | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TH |
| Standards | CENELEC EN 50041 IEC 60204-1 IEC 60947-5-1 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 width | 5.7 CENTIMETER |
| Package 1 length | 21 CENTIMETER |
| Package 1 weight | 0.51 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 4.2 CENTIMETER |
| Package 2 width | 5.7 CENTIMETER |
| Package 2 length | 21 CENTIMETER |
| Package 2 weight | 0.52 KILOGRAM |
| Indivisible sale quantity | 1 |
