Telemecanique Sensors
Telemecanique Sensors - XCKN2539G11
Telemecanique Sensors - XCKN2539G11
SKU:XCKN2539G11
Normaler Preis
€21,68 EUR
Normaler Preis
Verkaufspreis
€21,68 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

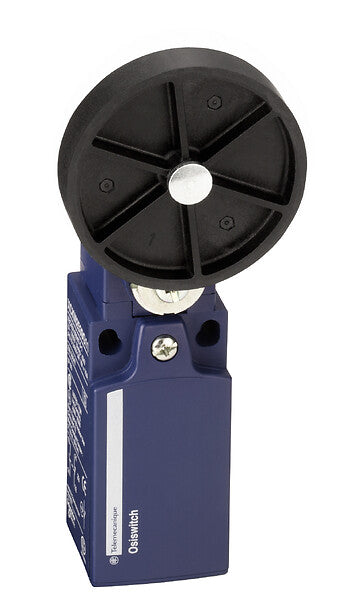

Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever Ø 50 mm, 1NC+1 NO, slow, Pg11
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic roller diameter 50 mm |
| Type of approach | Lateral approach, 2 directions |
| Cable entry | 1 entry tapped for Pg 11 cable gland |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Ergänzende Merkmale | |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Umgebung | |
| Shock resistance | 45 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Overvoltage category | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCC CSA UL |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 11 CENTIMETER |
| Package 1 width | 16 CENTIMETER |
| Package 1 length | 31 CENTIMETER |
| Package 1 weight | 0.113 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 60 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 7.55 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 480 |
| Package 3 height | 70 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 88.8 KILOGRAM |
| Indivisible sale quantity | 20 |
