Telemecanique Sensors
Telemecanique Sensors - XCKN3903F12S66
Telemecanique Sensors - XCKN3903F12S66
SKU:XCKN3903F12S66
Normaler Preis
€49,98 EUR
Normaler Preis
Verkaufspreis
€49,98 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

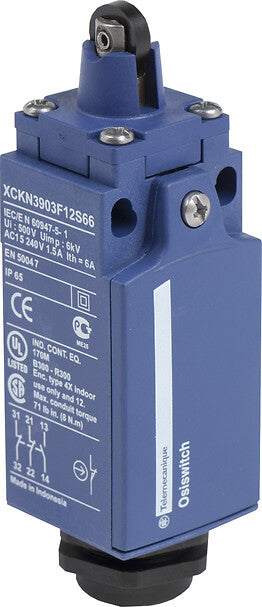

Limit switch, Limit switches XC Standard, XCKN, thermoplastic plastic roller lever, 1 NO + 1NC
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Head type | Rotary head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Ergänzende Merkmale | |
| Contacts insulation form | Zb |
| Contact code designation | Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (11-12)NC (21-22)NC |
| Umgebung | |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Overvoltage category | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCC CSA UL |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 10 CENTIMETER |
| Package 1 width | 50 CENTIMETER |
| Package 1 length | 14 CENTIMETER |
| Package 1 weight | 68.04 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 80 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.445 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 1280 |
| Package 3 height | 75 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 87.092 KILOGRAM |
| Indivisible sale quantity | 20 |
