Telemecanique Sensors

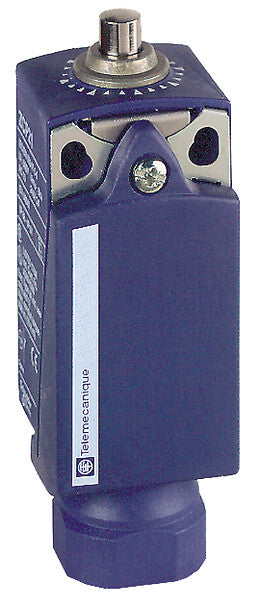

Telemecanique Sensors - XCKP2110G13SAM
Telemecanique Sensors - XCKP2110G13SAM
SKU:XCKP2110G13SAM
Normaler Preis
€16,91 EUR
Normaler Preis
Verkaufspreis
€16,91 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch, Limit switches XC Standard, XCKP compact Pg 13
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKP |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic variable length |
| Type of approach | Lateral approach, 2 directions |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland |
| Contacts insulation form | Zb |
| Repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Umgebung | |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Protective treatment | TC |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 weight | 0.071 KILOGRAM |
| Package 1 width | 8 CENTIMETER |
| Package 1 length | 4.2 CENTIMETER |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 77 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.852 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 1232 |
| Package 3 height | 77 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 93.632 KILOGRAM |
| Indivisible sale quantity | 1 |
