Telemecanique Sensors
Telemecanique Sensors - XCLJ167
Telemecanique Sensors - XCLJ167
SKU:XCLJ167
Normaler Preis
€47,99 EUR
Normaler Preis
Verkaufspreis
€47,99 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

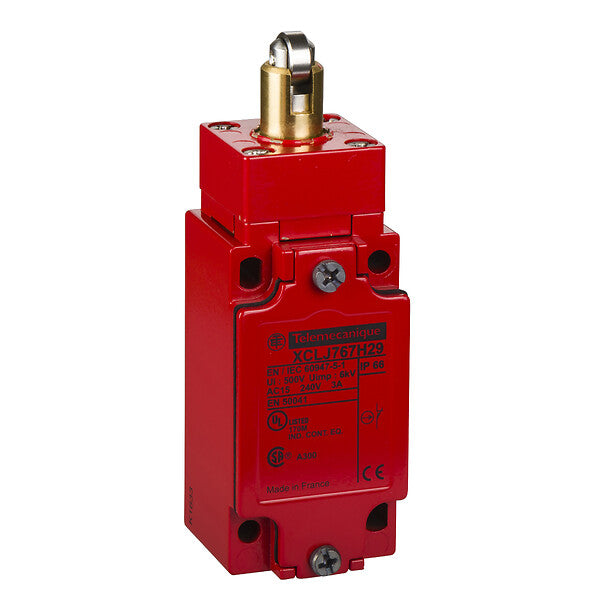

Limit switch, Limit switches XC Standard, XCLJ, red body steel, roller plunger, NC and NC snap contacts
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCLJ |
| Sensor design | Form C conforming to CENELEC EN 50041 |
| Body type | Fixed |
| Head type | Plunger head |
| Ergänzende Merkmale | |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts type and composition | 1 NC + 1 NO |
| Contacts insulation form | Zb |
| Contact operation | Snap action |
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Umgebung | |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Overvoltage category | Class I conforming to IEC 61140 |
| Standards | CENELEC EN 50041 IEC 60204-1 IEC 60947-5-1 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 12.6 CENTIMETER |
| Package 1 width | 6.8 CENTIMETER |
| Package 1 length | 4.1 CENTIMETER |
| Package 1 weight | 0.49 KILOGRAM |
| Package 2 height | 3.5 CENTIMETER |
| Package 2 width | 3.5 CENTIMETER |
| Package 2 length | 2.8 CENTIMETER |
| Package 2 weight | 37 KILOGRAM |
| Indivisible sale quantity | 1 |
