Telemecanique Sensors
Telemecanique Sensors - XCMD2115AM4
Telemecanique Sensors - XCMD2115AM4
SKU:XCMD2115AM4
Normaler Preis
€25,04 EUR
Normaler Preis
Verkaufspreis
€25,04 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

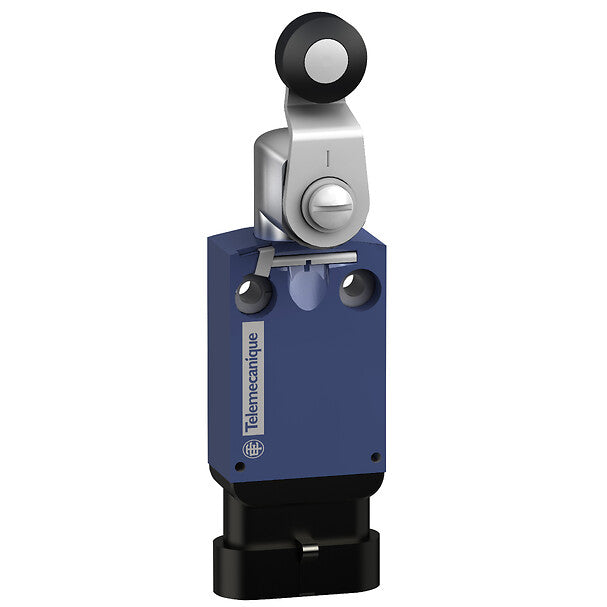

Limit switch, Limit switches XC Standard, XCMD, plastic lever, 1NC+1 NO, snap, AMP 4P
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Plug-in body |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | Lateral approach, 2 directions |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Tracks | 24/31 mm |
| Switch actuation | By 30° cam |
| Electrical connection | Male connector AMP connector, 4 pins |
| Contacts insulation form | Zb |
| Positive opening | With |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Umgebung | |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to EN 62262 |
| Electrical shock protection class | Class III conforming to IEC 61140, class III conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCC cURus |
| Standards | CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 UL 508 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 7 CENTIMETER |
| Package 1 length | 17 CENTIMETER |
| Package 1 weight | 0.129 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 50 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 6.864 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 800 |
| Package 3 height | 70 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 114.824 KILOGRAM |
| Indivisible sale quantity | 1 |
