Telemecanique Sensors
Telemecanique Sensors - XCMD2116L5SBW
Telemecanique Sensors - XCMD2116L5SBW
SKU:XCMD2116L5SBW
Normaler Preis
€106,05 EUR
Normaler Preis
Verkaufspreis
€106,05 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

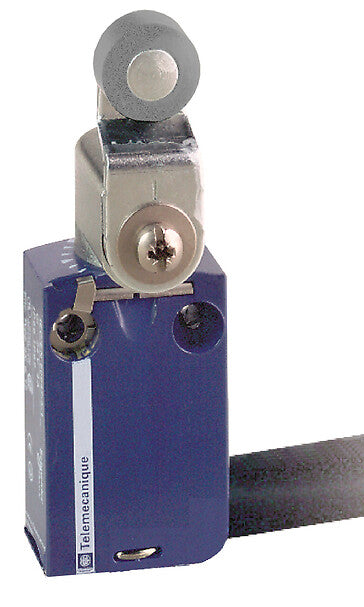

Limit switch, Limit switches XC Standard, XCMD, steel roller lever, 1NC+1 NO, snap, 5 m
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever steel |
| Type of approach | Lateral approach, 2 directions |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Switch actuation | By 30° cam |
| Electrical connection | Removable cable connector |
| Cable composition | 5 x 0.75 mm² |
| Wire insulation material | PvR |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Umgebung | |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
| Product certifications | CSA UL |
| Standards | IEC 60947-5-1 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 1.6 CENTIMETER |
| Package 1 width | 30 CENTIMETER |
| Package 1 length | 25 CENTIMETER |
| Package 1 weight | 0.524 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 20 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 40 CENTIMETER |
| Package 2 length | 30 CENTIMETER |
| Package 2 weight | 11.04 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 160 |
| Package 3 height | 77 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 88.84 KILOGRAM |
| Indivisible sale quantity | 1 |
