Telemecanique Sensors
Telemecanique Sensors - XCMD21F2M12
Telemecanique Sensors - XCMD21F2M12
SKU:XCMD21F2M12
Normaler Preis
€69,83 EUR
Normaler Preis
Verkaufspreis
€69,83 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

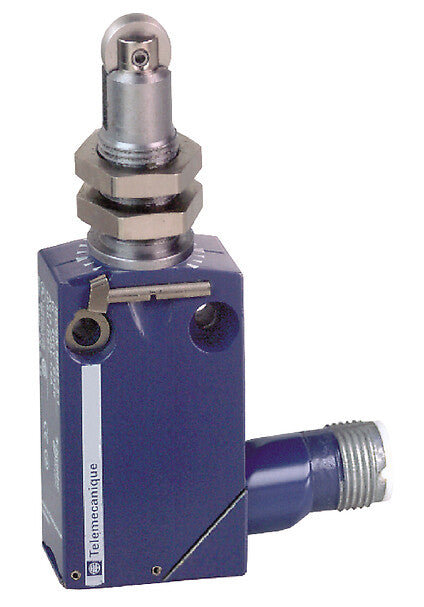

Limit switch, Limit switches XC Standard, XCMD, M12 steel roller plunger, 1C/O, snap, M12
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Plug-in body |
| Head type | M12 plunger head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the head |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal |
| Type of approach | Lateral approach, 2 directions |
| Contacts type and composition | 1 C/O |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Switch actuation | By 30° cam |
| Electrical connection | Male connector M12, 4 pins |
| Contacts insulation form | Za |
| Positive opening | Without |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Umgebung | |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to EN 62262 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCC CSA UL |
| Standards | CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 UL 508 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 1.8 CENTIMETER |
| Package 1 width | 5.3 CENTIMETER |
| Package 1 length | 8.8 CENTIMETER |
| Package 1 weight | 0.114 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 40 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.785 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 1.8 CENTIMETER |
| Package 3 width | 5.3 CENTIMETER |
| Package 3 length | 8.8 CENTIMETER |
| Package 3 weight | 0.114 KILOGRAM |
| Indivisible sale quantity | 1 |
