Telemecanique Sensors
Telemecanique Sensors - XCRT215
Telemecanique Sensors - XCRT215
SKU:XCRT215
Normaler Preis
€415,38 EUR
Normaler Preis
Verkaufspreis
€415,38 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

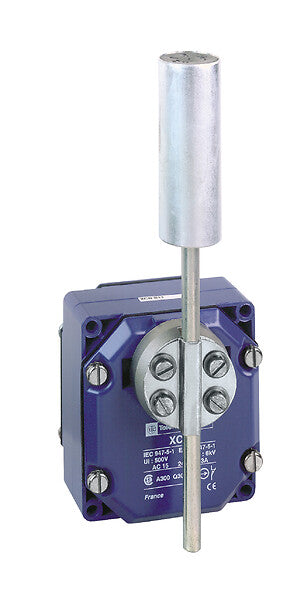

Limit switch, Limit switches XC Standard, XCRT, metal enclosure stainless steel roller with lever, 2C/O
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | OsiSense XC |
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | For conveyor belt shift monitoring |
| Device short name | XCRT |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller stainless steel with lever |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contact block per direction [control circuit] | 2 per direction |
| Positive opening | Without |
| Ergänzende Merkmale | |
| Body material | Zinc alloy |
| Switch actuation | By conveyor belt |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300 |
| Contacts insulation form | Za |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO |
| Umgebung | |
| Shock resistance | 30 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Overvoltage category | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 NF C 79-130 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 9 CENTIMETER |
| Package 1 width | 13 CENTIMETER |
| Package 1 length | 23.2 CENTIMETER |
| Package 1 weight | 1.293 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 3 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.376 KILOGRAM |
| Unit type of package 3 | S03 |
| Number of units in package 3 | 8 |
| Package 3 height | 30 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 10.83 KILOGRAM |
| Indivisible sale quantity | 1 |
