Telemecanique Sensors

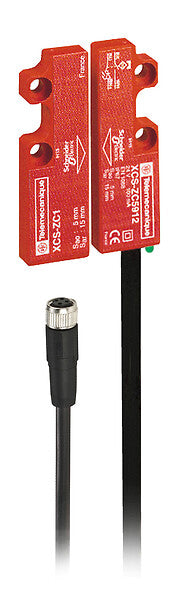

Telemecanique Sensors - XCSDMC791L01M8
Telemecanique Sensors - XCSDMC791L01M8
SKU:XCSDMC791L01M8
Normaler Preis
€60,85 EUR
Normaler Preis
Verkaufspreis
€60,85 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMC, 2 NC, staggered, M8 0.15 m
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Coded magnetic switch |
| Component name | XCSDMC |
| Design | Rectangular, compact |
| Size | 51 x 16 x 7 mm |
| Contacts type and composition | 2 NC |
| Contact operation | Staggered |
| Material | Plastic |
| Electrical connection | Connector on flying lead |
| Connector type | M8 |
| Local signalling | 1 LED |
| Approach directions | 3 directions |
| [Ue] rated operational voltage | 24 V DC |
| Ergänzende Merkmale | |
| [Ie] rated operational current | 100 MILLIAMPERE |
| Contacts material | Rhodium |
| Switching capacity in mA | 5...100 mA |
| Insulation resistance | 1000 MOhm |
| Switching frequency | 150 Hz |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Enclosure material | Thermoplastic PBT |
| Cable material | PVC |
| Umgebung | |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 ISO 12100 ISO 14119 UL 508 |
| Product certifications | CSA UL |
| Protective treatment | TH |
| Vibration resistance | 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Sensitivity to magnetic fields | 0.3 MILLITESLA |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP67 conforming to IEC 60529 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 2.6 CENTIMETER |
| Package 1 width | 13.2 CENTIMETER |
| Package 1 length | 17.7 CENTIMETER |
| Package 1 weight | 0.044 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 40 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.07 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 19 CENTIMETER |
| Package 3 width | 2 CENTIMETER |
| Package 3 length | 4 CENTIMETER |
| Package 3 weight | 0.044 KILOGRAM |
| Indivisible sale quantity | 1 |
