Telemecanique Sensors
Telemecanique Sensors - ZC2JD18
Telemecanique Sensors - ZC2JD18
SKU:ZC2JD18
Normaler Preis
€63,53 EUR
Normaler Preis
Verkaufspreis
€63,53 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

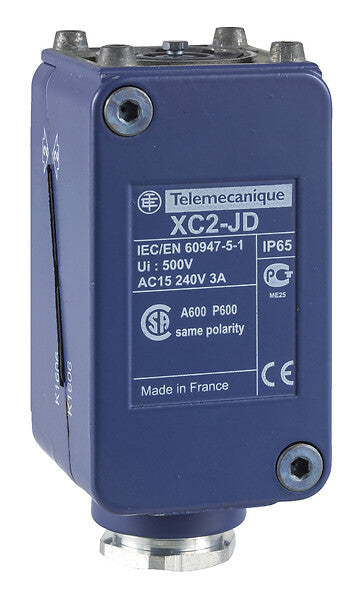

Limit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 1C/O
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body part with contact |
| Device short name | ZC2J |
| Body type | Plug-in body |
| Product compatibility | XC2J |
| Body material | Metal |
| Cable entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Contacts type and composition | 1 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Ergänzende Merkmale | |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO |
| Umgebung | |
| IP degree of protection | IP65 |
| IK degree of protection | IK08 |
| Environmental characteristic | Corrosive |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 4.8 CENTIMETER |
| Package 1 length | 9.5 CENTIMETER |
| Package 1 weight | 0.219 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 12 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.742 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 9.5 CENTIMETER |
| Package 3 width | 5 CENTIMETER |
| Package 3 length | 4.8 CENTIMETER |
| Package 3 weight | 0.219 KILOGRAM |
| Indivisible sale quantity | 1 |
