Telemecanique Sensors

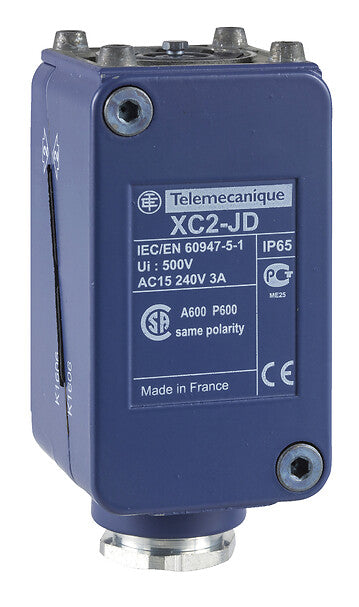

Telemecanique Sensors - ZC2JD26
Telemecanique Sensors - ZC2JD26
SKU:ZC2JD26
Normaler Preis
€168,21 EUR
Normaler Preis
Verkaufspreis
€168,21 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch body, Limit switches XC Standard, ZC2J, plug in, without display, 2C/O, -40...70 °C
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZC2J |
| Body type | Plug-in body |
| Product compatibility | XC2J |
| Body material | Metal |
| Cable entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Ergänzende Merkmale | |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
| Umgebung | |
| IP degree of protection | IP65 |
| IK degree of protection | IK08 |
| Environmental characteristic | Temperature variation |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 0.42 CENTIMETER |
| Package 1 width | 0.42 CENTIMETER |
| Package 1 length | 0.95 CENTIMETER |
| Package 1 weight | 0.385 KILOGRAM |
| Indivisible sale quantity | 1 |
