Telemecanique Sensors
Telemecanique Sensors - ZC2JD48
Telemecanique Sensors - ZC2JD48
SKU:ZC2JD48
Normaler Preis
€131,45 EUR
Normaler Preis
Verkaufspreis
€131,45 EUR
Stückpreis
/
pro
inkl. MwSt.
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

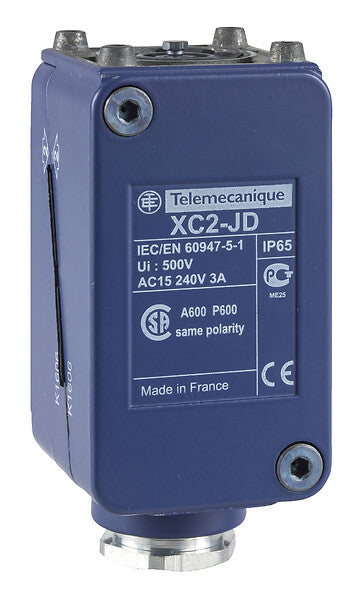

Limit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 2C/O
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body part with contact |
| Device short name | ZC2J |
| Body type | Plug-in body |
| Product compatibility | XC2J |
| Body material | Metal |
| Cable entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Ergänzende Merkmale | |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
| Umgebung | |
| IP degree of protection | IP65 |
| IK degree of protection | IK08 |
| Environmental characteristic | Corrosive |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4.8 CENTIMETER |
| Package 1 width | 9.5 CENTIMETER |
| Package 1 length | 4.8 CENTIMETER |
| Package 1 weight | 0.22 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 12 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.834 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 4.8 CENTIMETER |
| Package 3 width | 4.8 CENTIMETER |
| Package 3 length | 9.5 CENTIMETER |
| Package 3 weight | 0.222 KILOGRAM |
| Indivisible sale quantity | 1 |
