Telemecanique Sensors

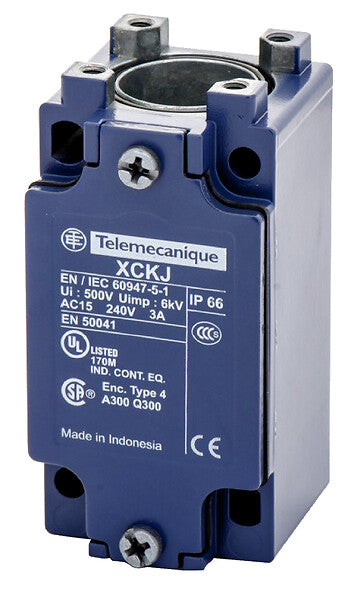

Telemecanique Sensors - ZCKJ5H29
Telemecanique Sensors - ZCKJ5H29
SKU:ZCKJ5H29
Normaler Preis
€29,87 EUR
Normaler Preis
Verkaufspreis
€29,87 EUR
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, slow break, M20
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKJ |
| Body type | Fixed |
| Product compatibility | XCKJ |
| Body material | Metal |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Contacts material | Silver plated contacts |
| Ergänzende Merkmale | |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Positive opening | With |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Umgebung | |
| IP degree of protection | IP66 |
| IK degree of protection | IK07 |
| Environmental characteristic | High temperature low temperature standard environment |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 width | 4.5 CENTIMETER |
| Package 1 length | 8.7 CENTIMETER |
| Package 1 weight | 0.286 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 30 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.329 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 24 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 7.422 KILOGRAM |
| Indivisible sale quantity | 1 |
